Leofoto LB Leveling Base with Butterfly Handle

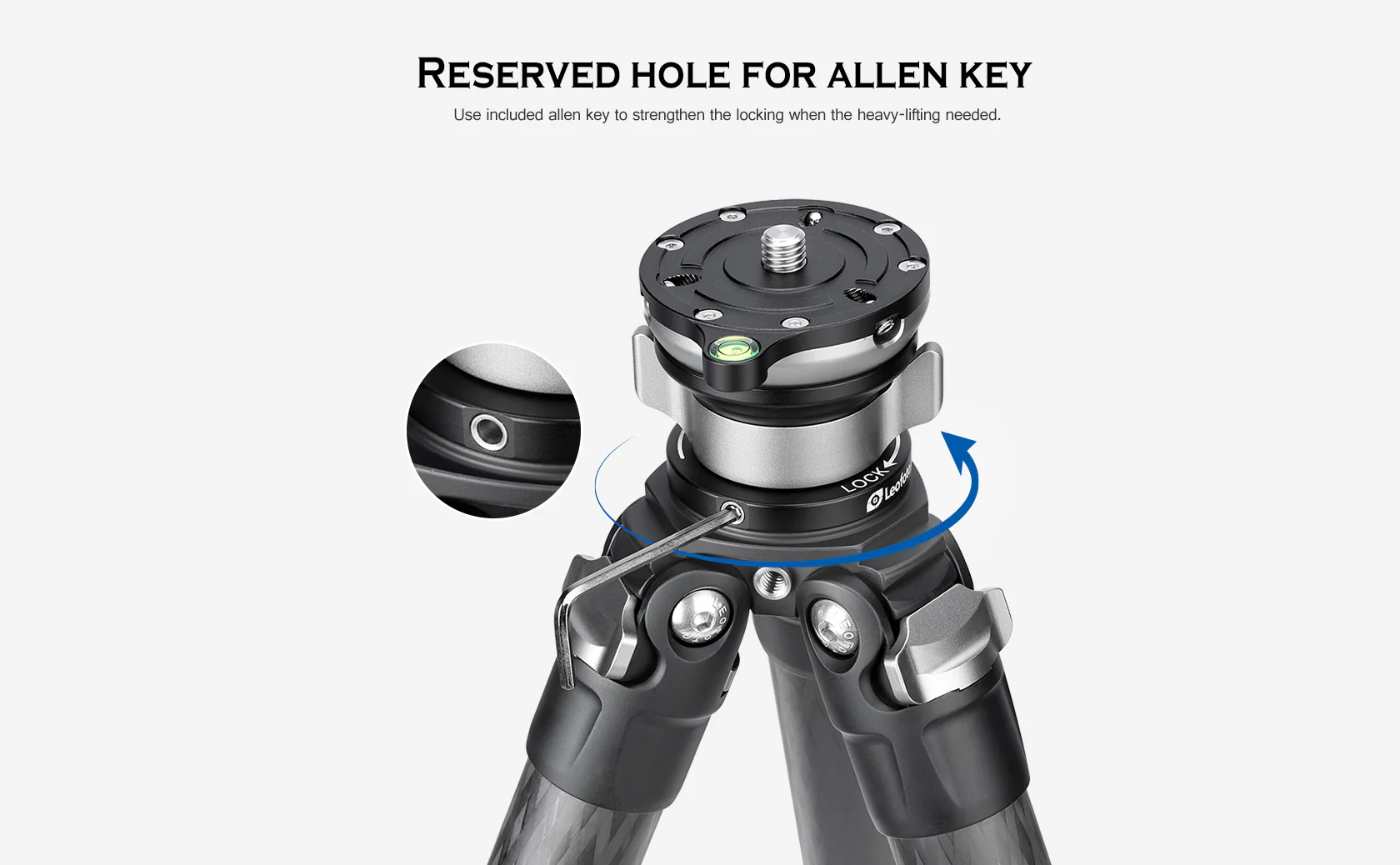

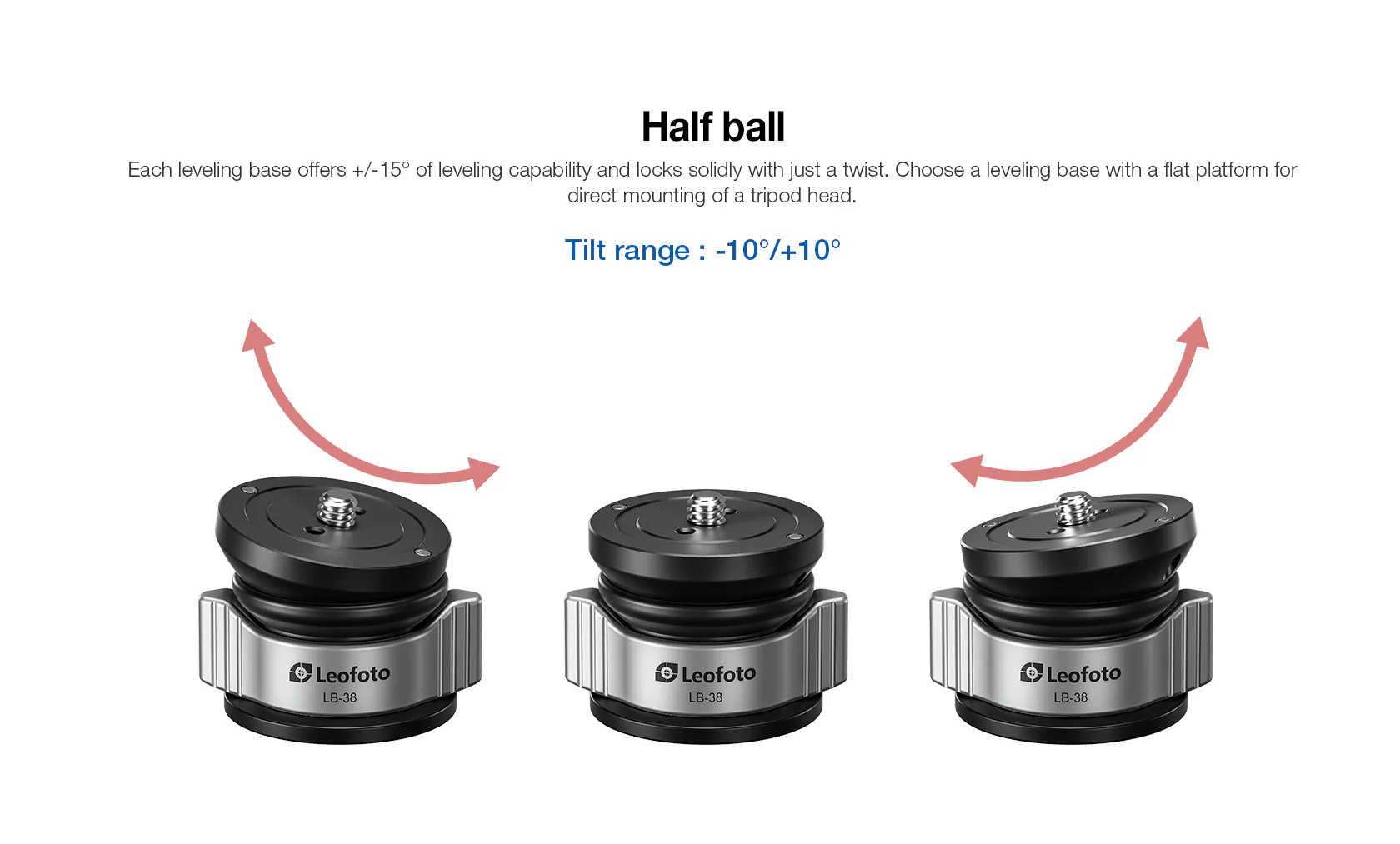

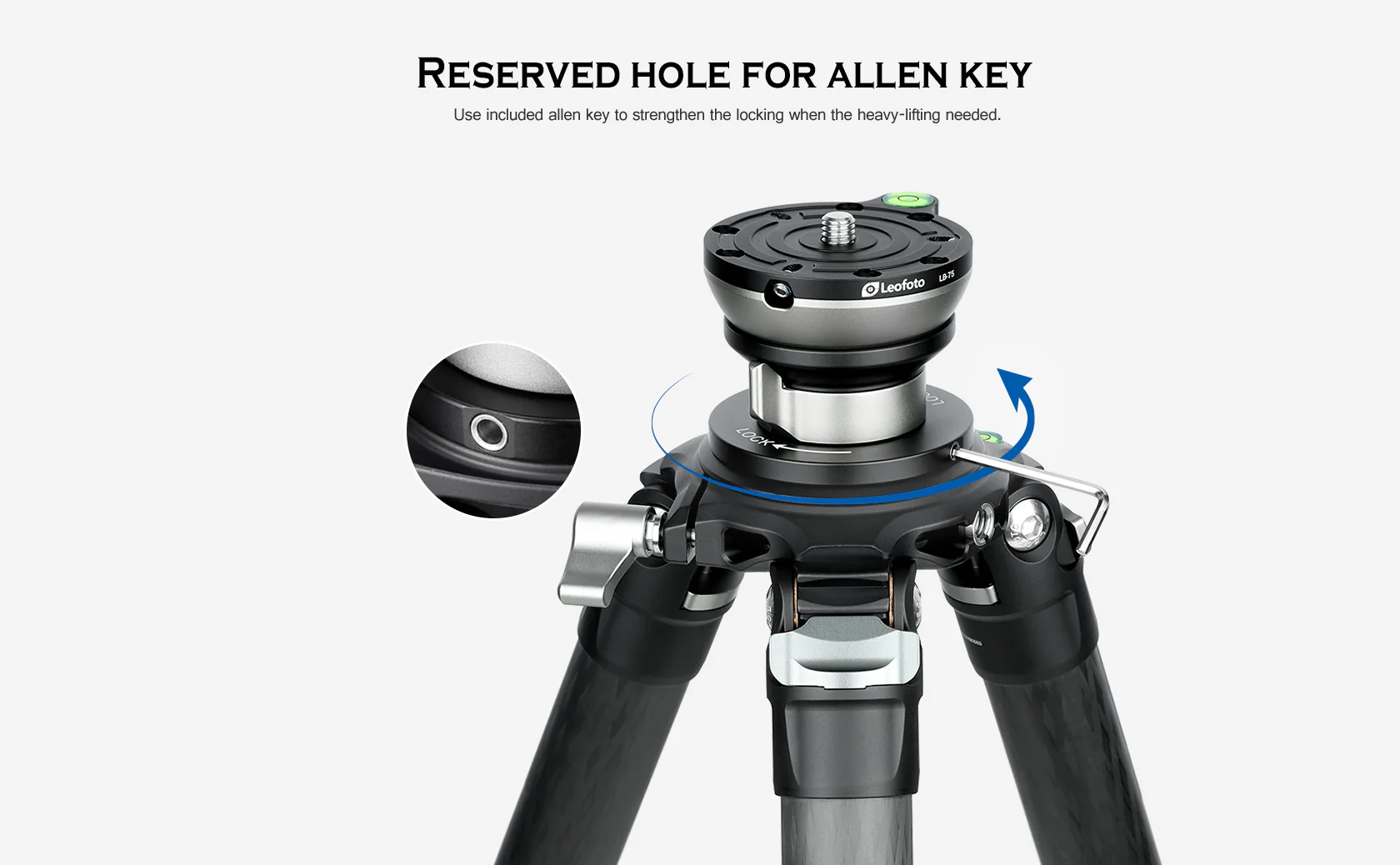

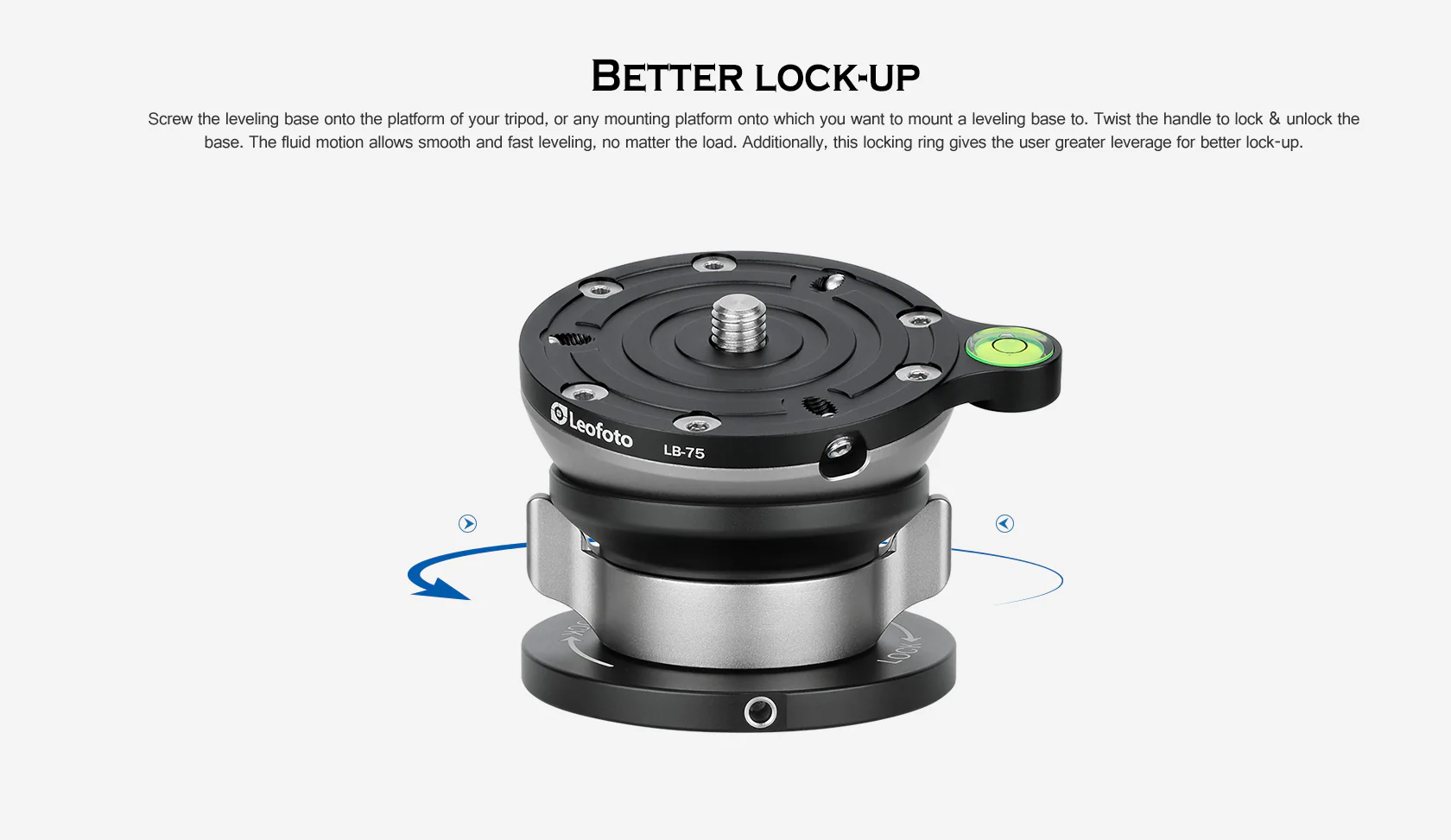

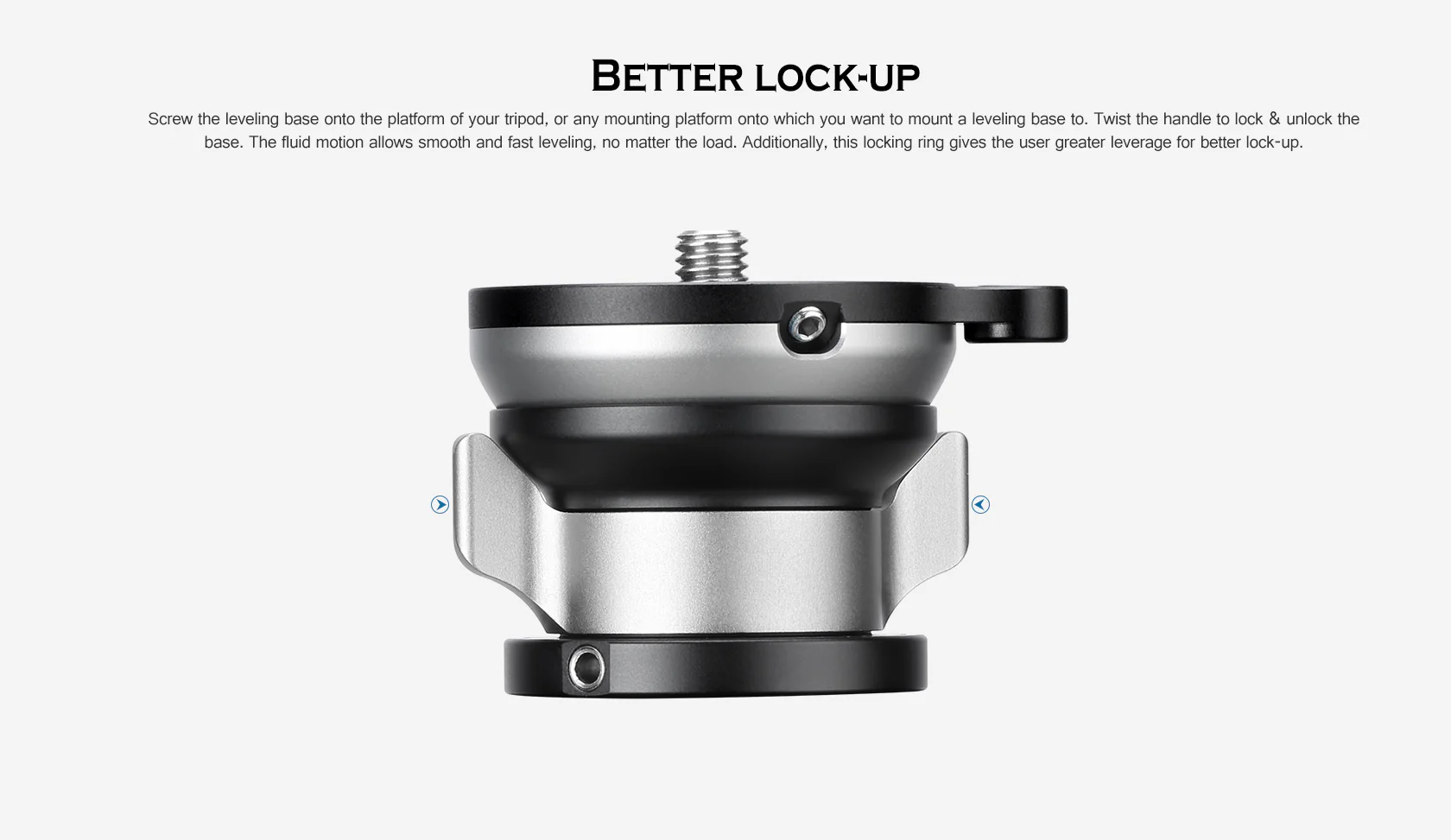

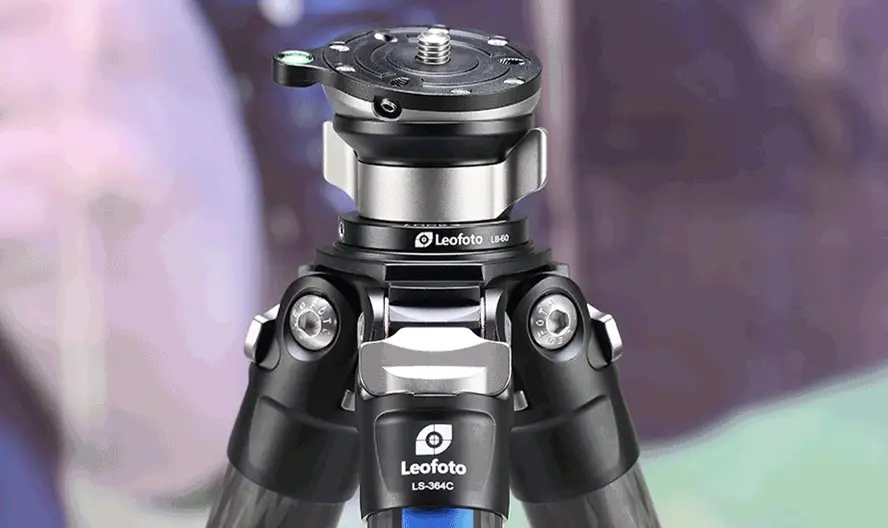

The Leofoto LB Series Leveling Base with Butterfly Handle acts like a half ball, with the LB-38 mini providing a leveling range of +/-10°, while the other models in the series offer a range of +/-15°. It locks easily and securely in position with a twist of the large butterfly handle at the base of the ball. This leveling base installs on any tripod with a 3/8" mounting stud.

Half-Ball Type Leveling Capability
3/8"-16 Threaded Base Mounting Socket

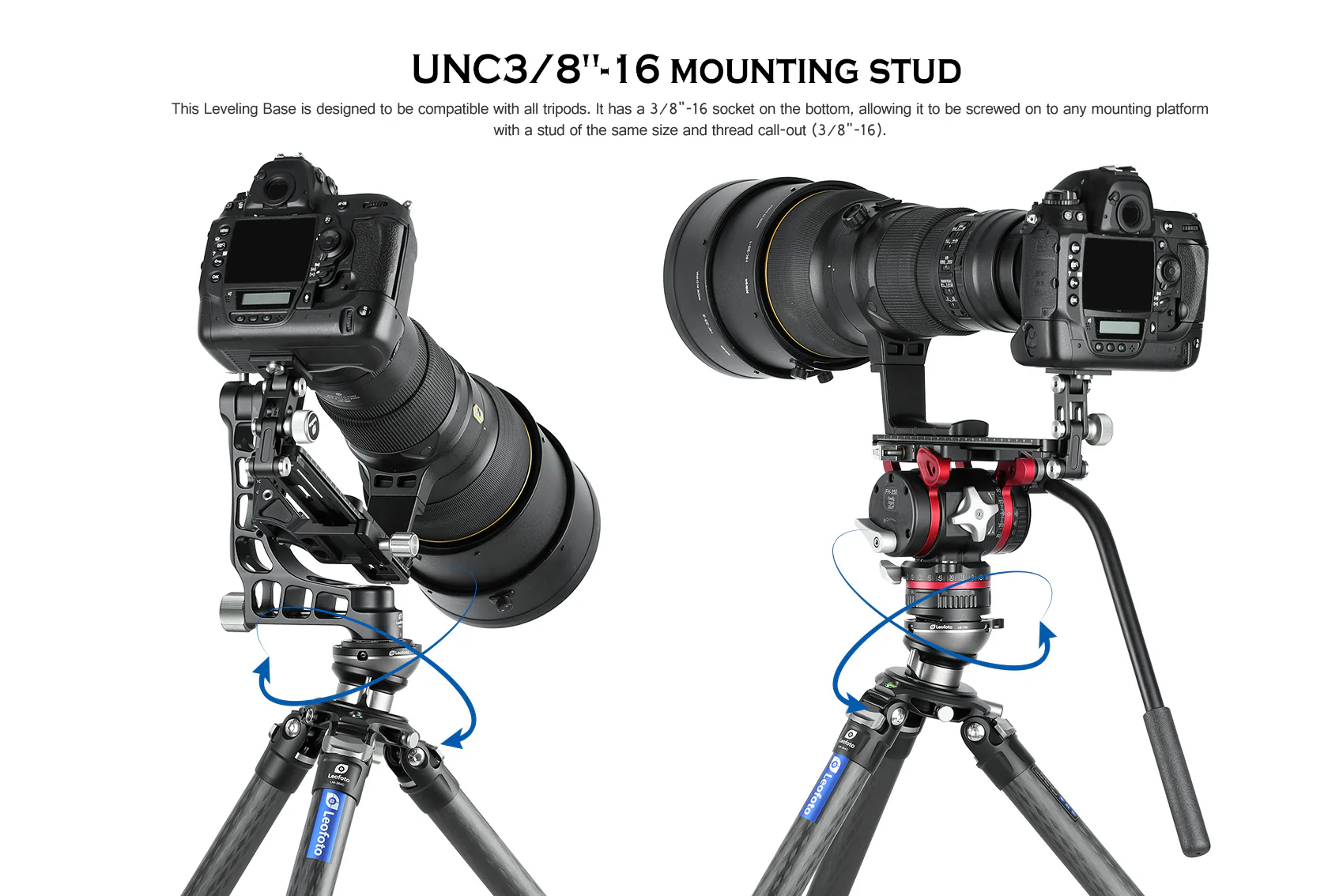

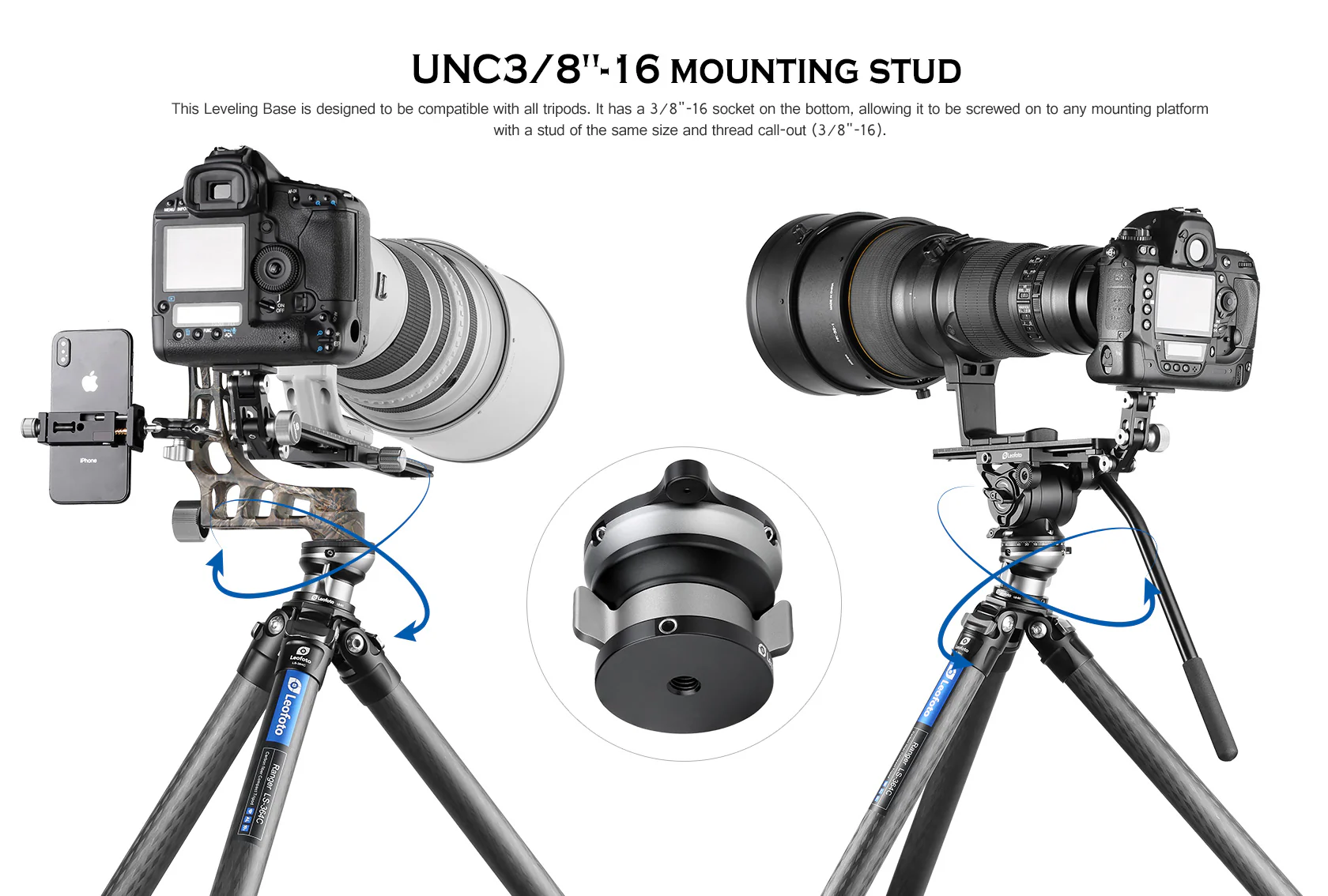

3/8"-16 Tripod Mounting Stud

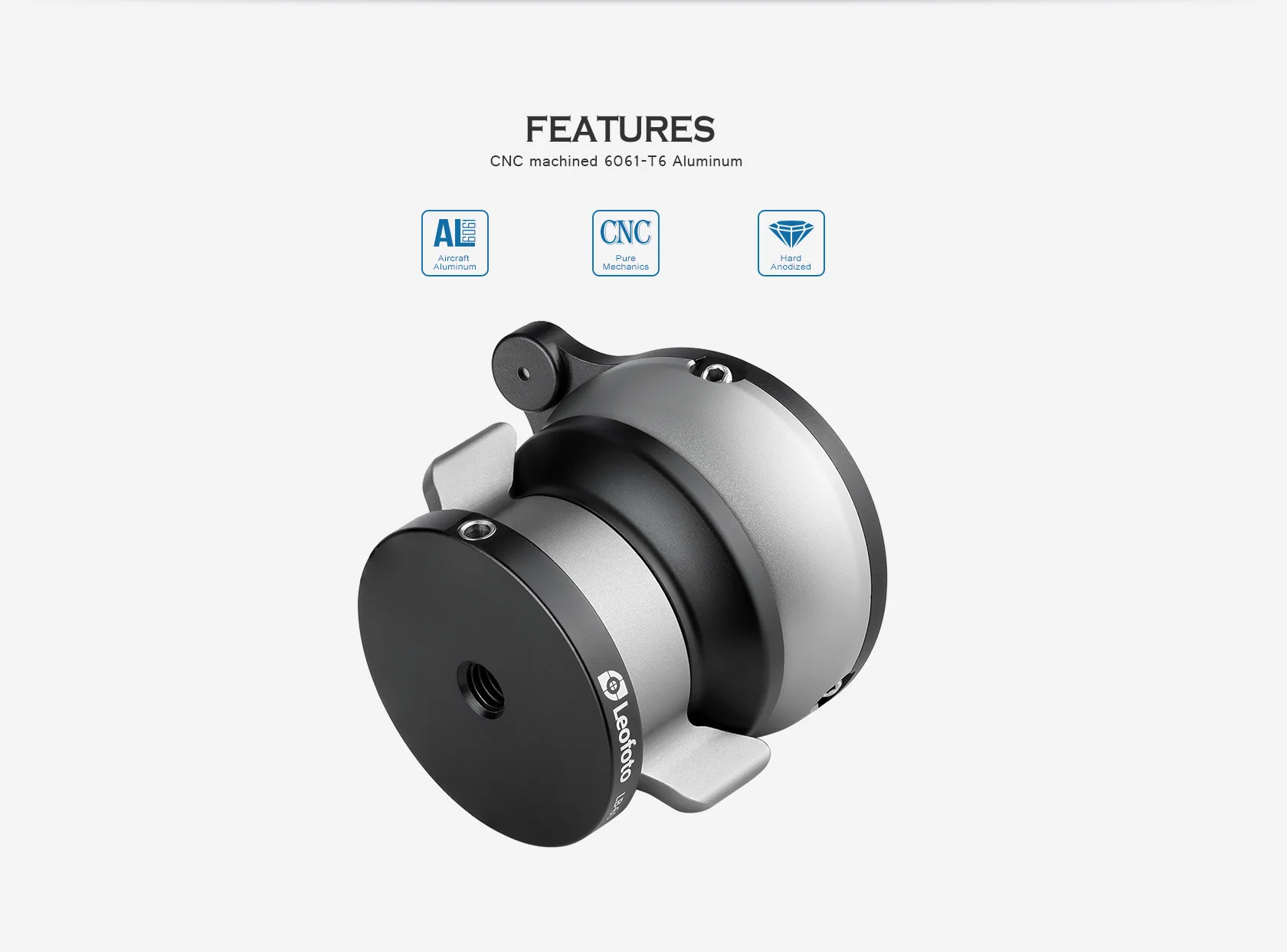

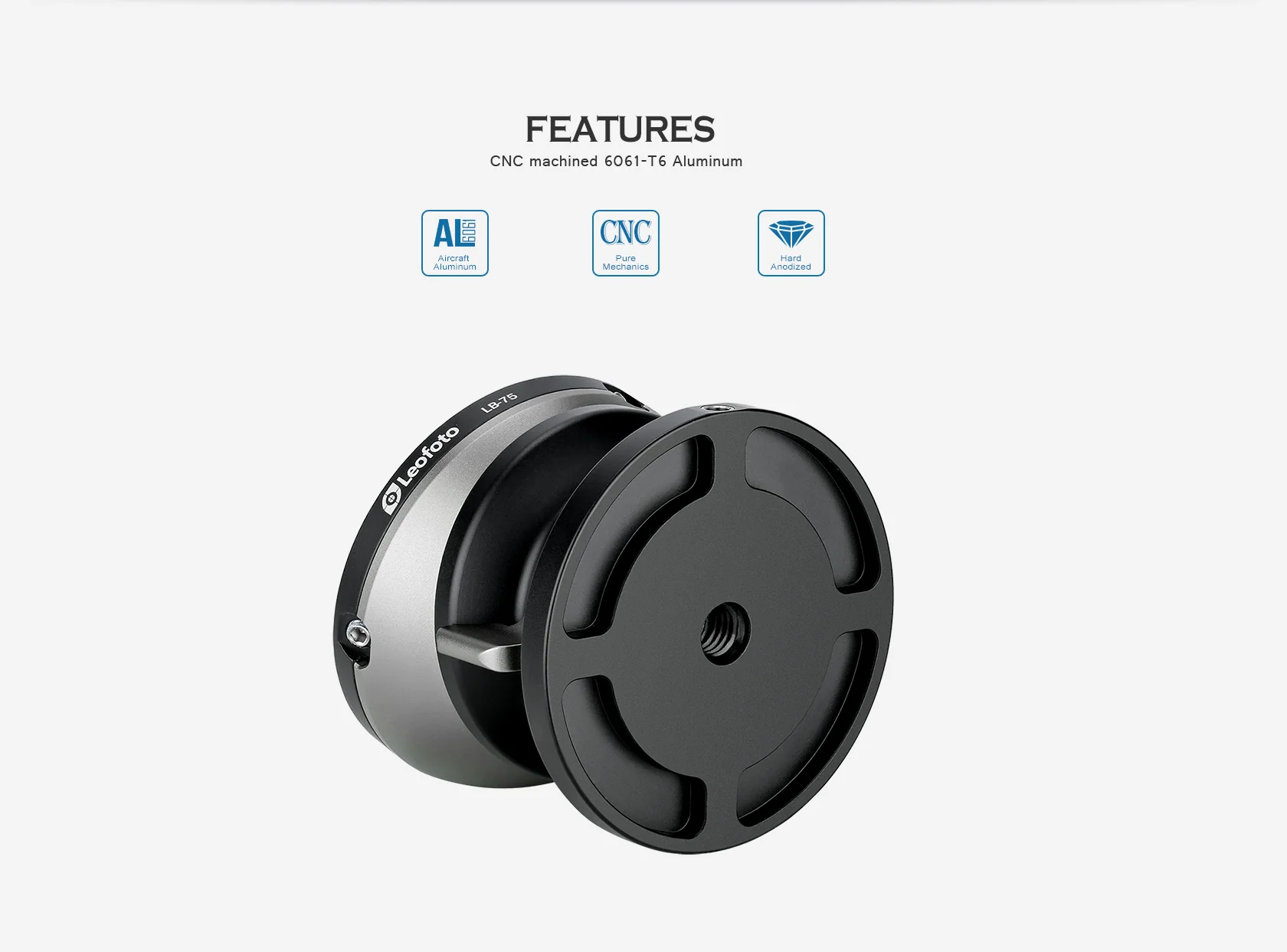

CNC-Machined Aircraft-Grade Aluminum

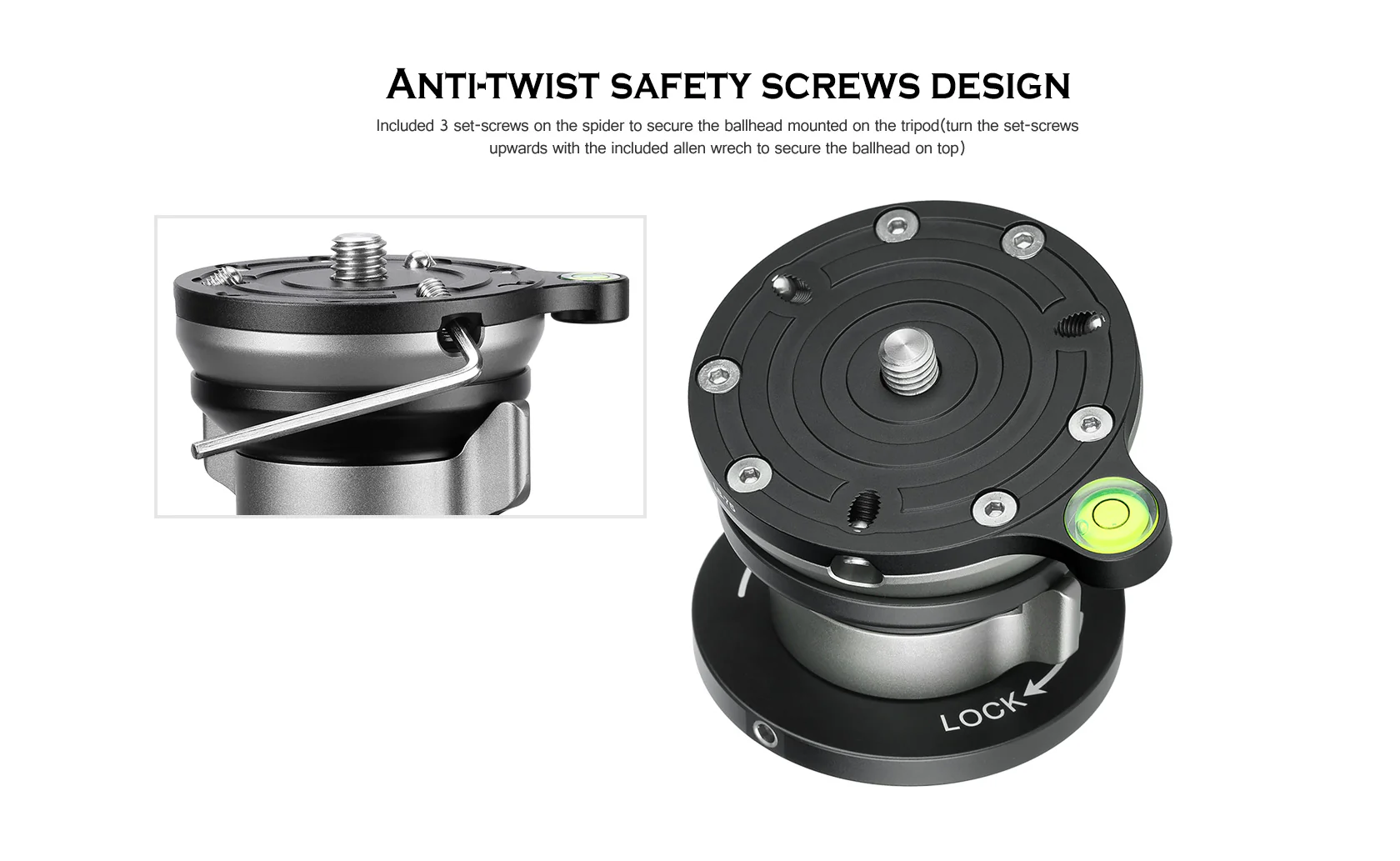

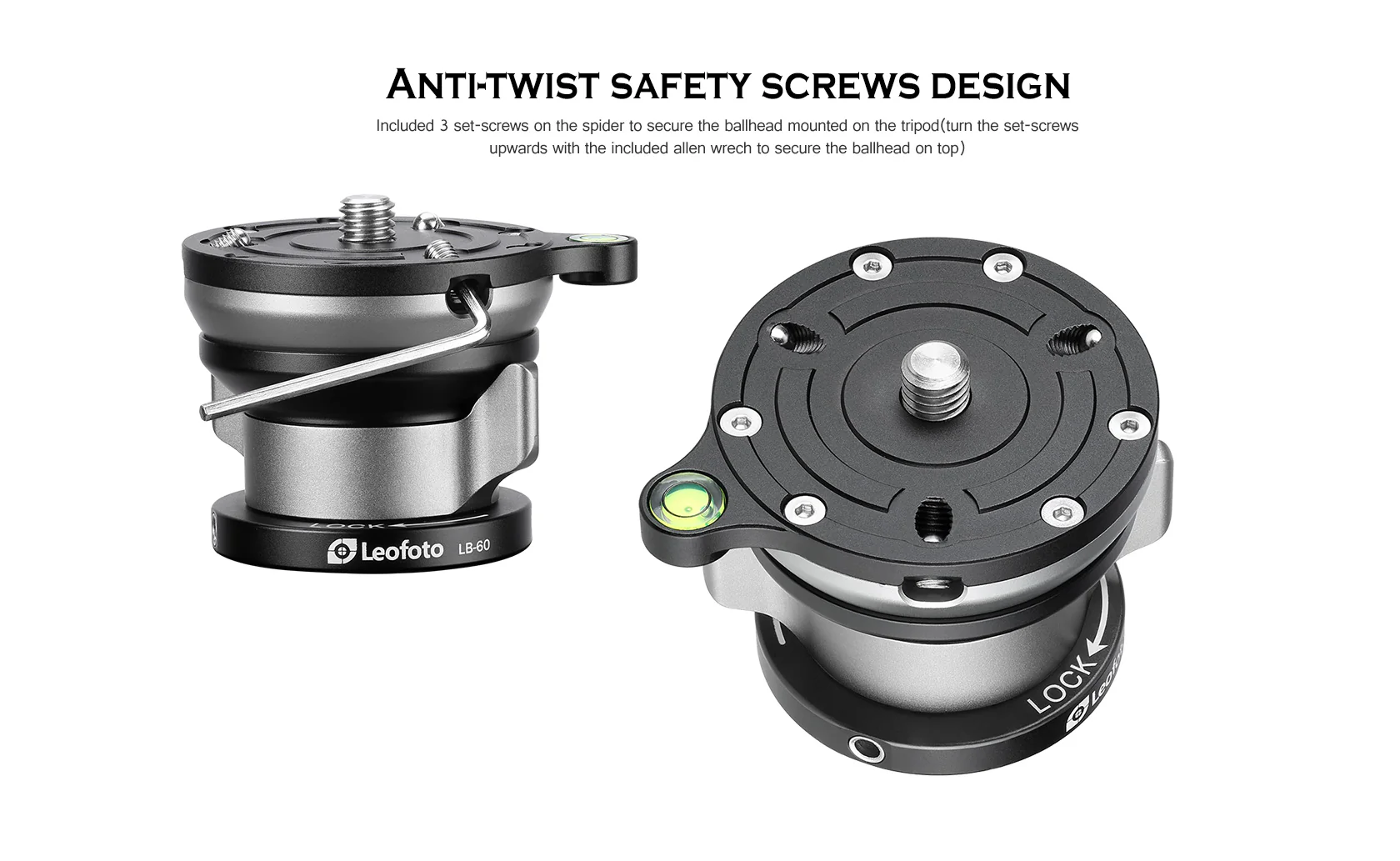

The anti-twist safety screw design uses three set screws on the platform to secure the ball head in place on top of the leveling base.

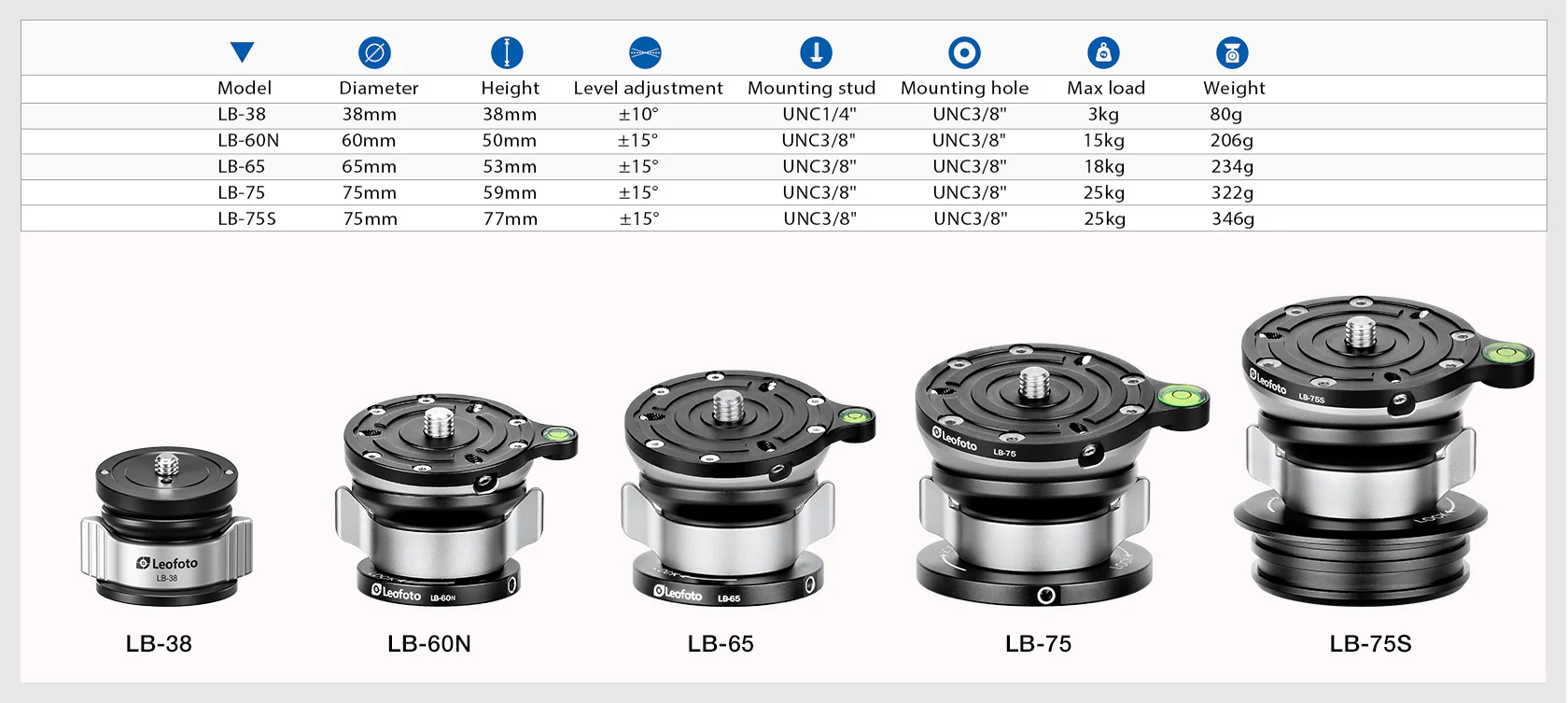

LB-38 Mini Leveling Base:

Top diameter: 38mm / 1.50in
Base diameter: 33mm / 1.30in
Height: 38mm / 1.50in
Max load: 3kg / 6.61lb
Weight: 80g / 0.18lb

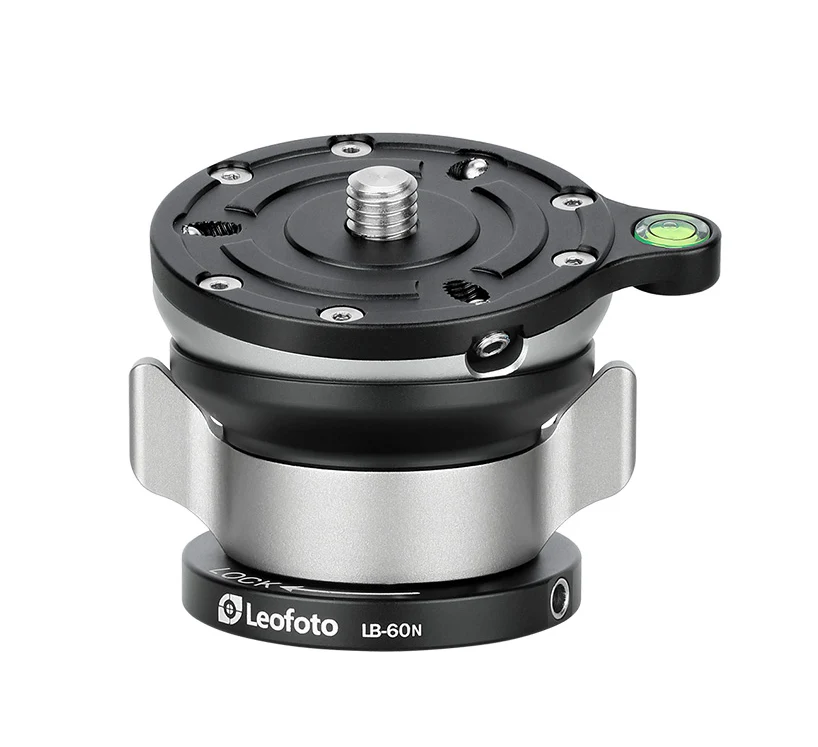

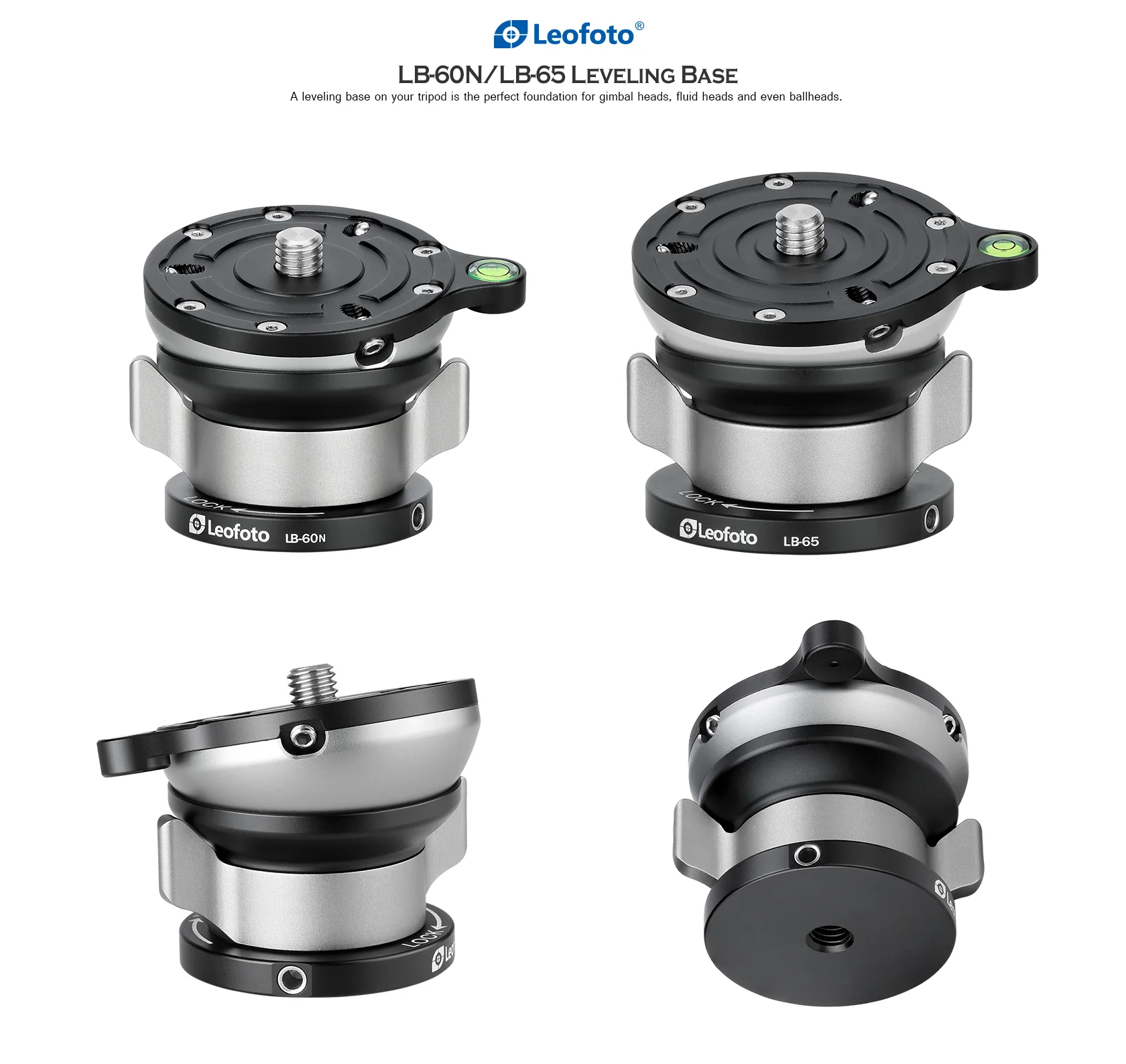

LB-60N Leveling Base:

Top diameter: 60mm/ 2.36in
Base diameter: 53mm/ 2.08in
Height: 50mm/ 1.96in
Max load :15kg/ 33lb
Weight: 206g/ 0.45lb

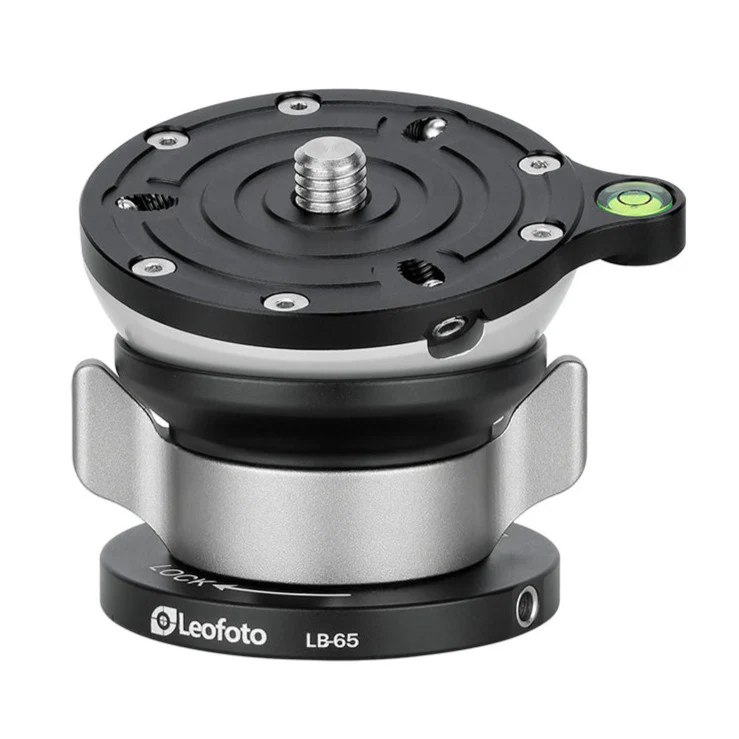

LB-65 Leveling Base:

Top diameter: 65mm/ 2.56in
Base diameter 60mm/ 2.36in
Height: 53mm/ 2.08in
Max load: 18kg/ 39.68lb
Weight: 234g/ 0.51lb

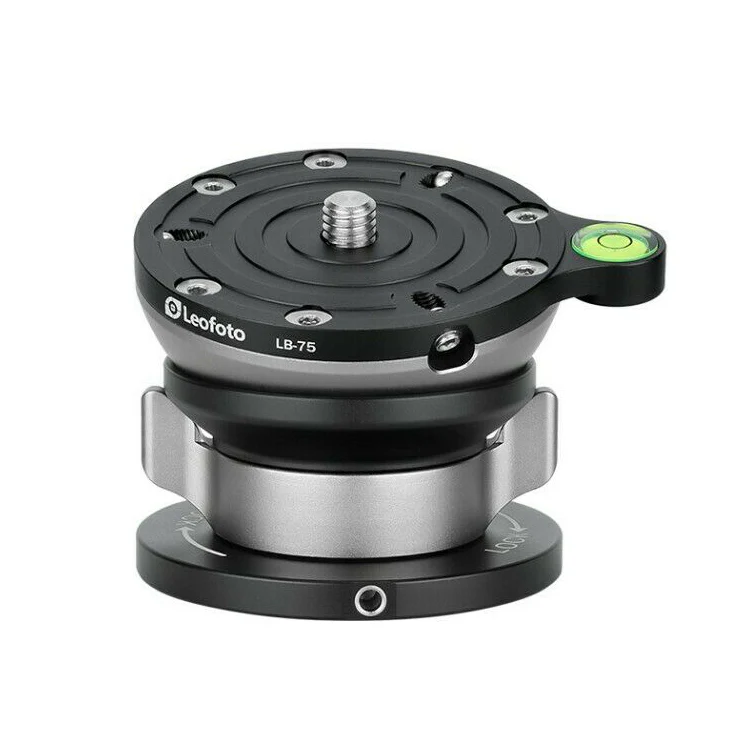

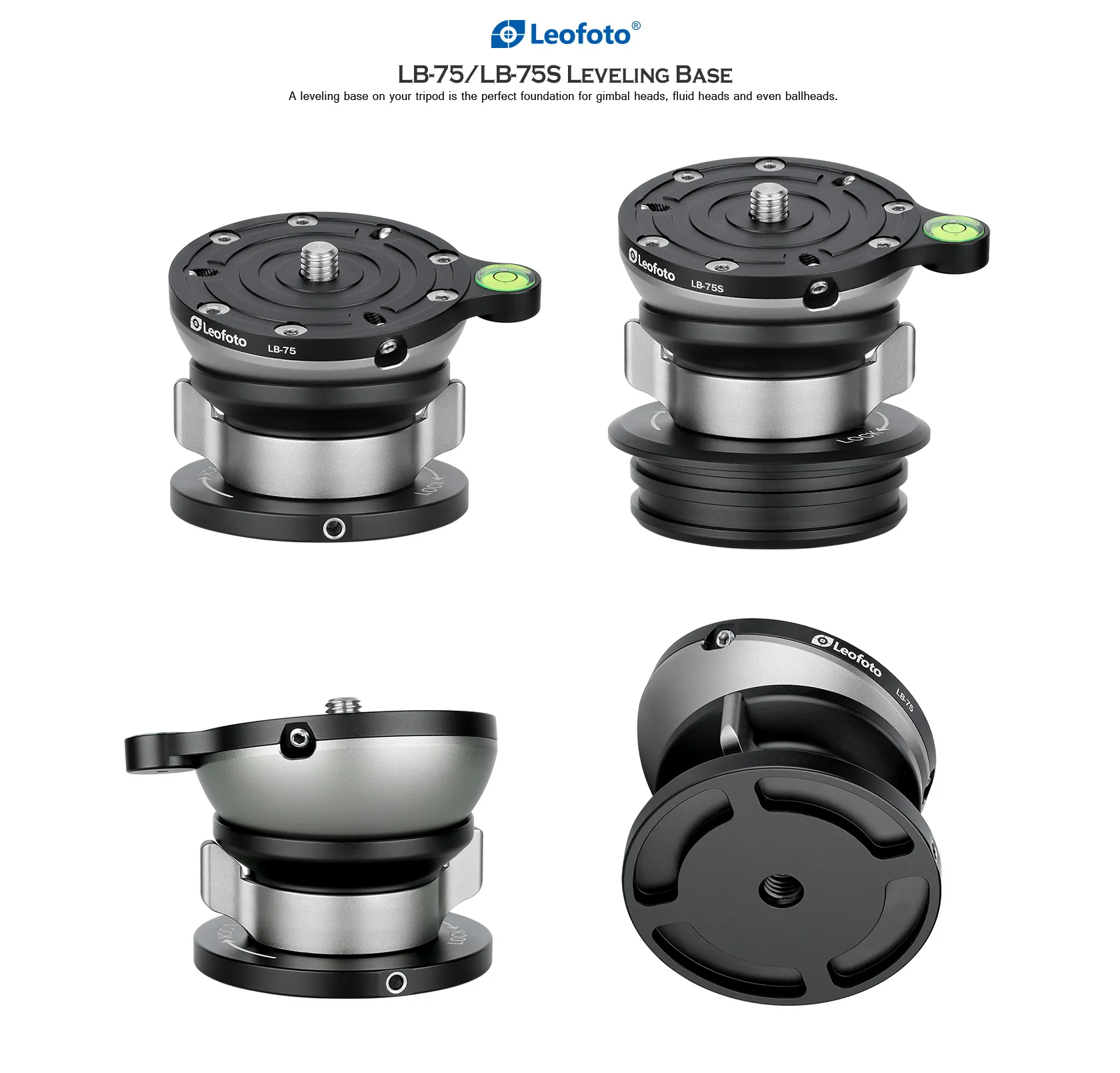

LB-75 Leveling Base:

Top diameter: 75mm/ 2.95in
Base diameter: 75mm/ 2.95in
Height: 59mm/ 2.32in
Max load: 25kg/ 55lb
Weight: 322g/ 0.71lb

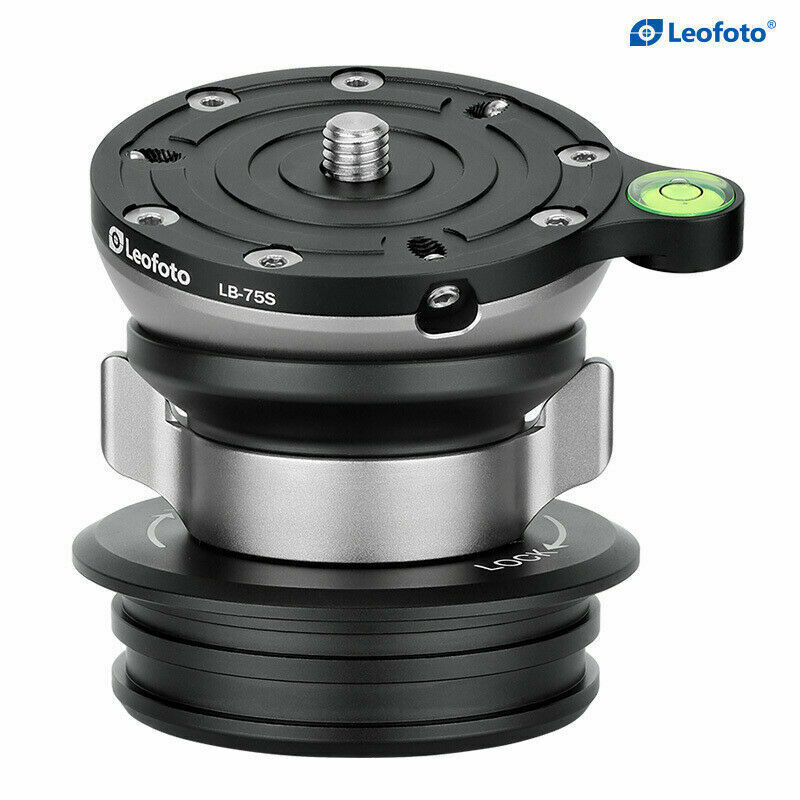

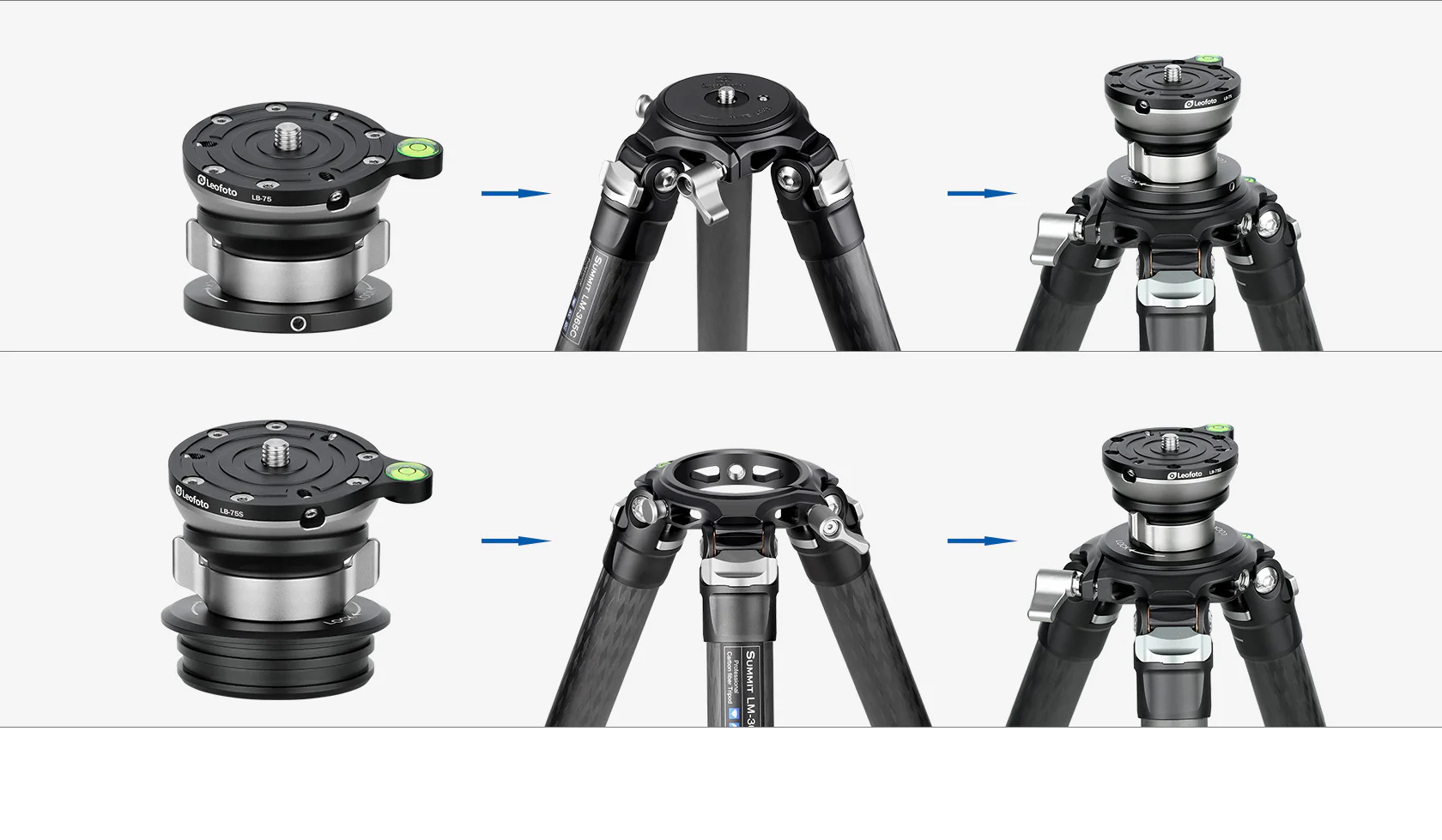

LB-75S (Leveling Base with Adapter for 75mm Tripod Bowls):

Top diameter: 81mm/ 3.18in
Base diameter: 81mm/ 3.18in
Height: 77mm/ 3.03in
Max load: 25kg/ 55lb
Weight: 346g/ 0.76lb

Compatible models: Leofoto LN-364C, LM-32XC, LM-36XC
